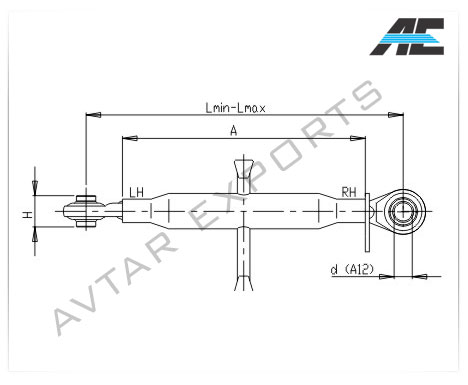

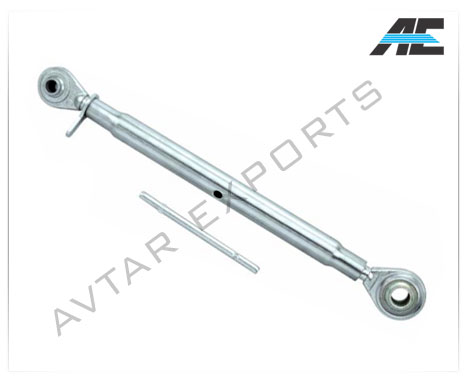

Part No. |
Cat. |
A mm |
Dmm |
H mm |
L min |
L max |
|
732001 |
1° |
300 |
19 |
44 |
400 |
560 |
|
732002 |
1° |
430 |
19 |
44 |
540 |
750 |
|
732003 |
1° |
470 |
19 |
44 |
580 |
790 |
|
732004 |
1°/2° |
360 |
19/25.4 |
44/51 |
480 |
680 |
|
732005 |
1°/2° |
470 |
19/25.4 |
44/51 |
585 |
810 |
|
732006 |
2° |
320 |
25.4 |
51 |
460 |
680 |
|
732007 |
2° |
420 |
25.4 |
51 |
540 |
790 |
|
732008 |
2° |
460 |
25.4 |
51 |
580 |
830 |
|
732009 |
2° |
520 |
25.4 |
51 |
640 |
890 |
|
732010 |
2°/3° |
400 |
25.4/32 |
51 |
555 |
840 |
|
732011 |
3° |
460 |
32 |
51 |
615 |
900 |
|
|
|

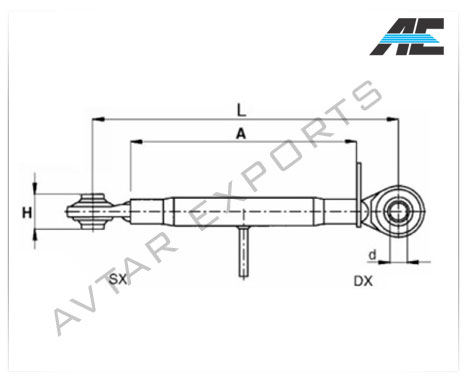

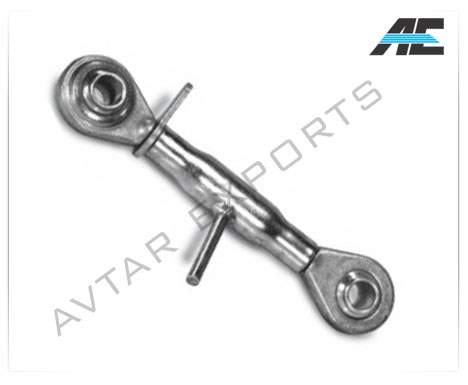

| Adjustable arm for front fixing |
|
|
|
|
|
|
|
Part No. |
Cat. |
A mm |
Dmm |
Hmm |
L min |
L max |
|
732101 |
2° |
180 |
25.4 |
51 |
300 |
430 |
|
|
|

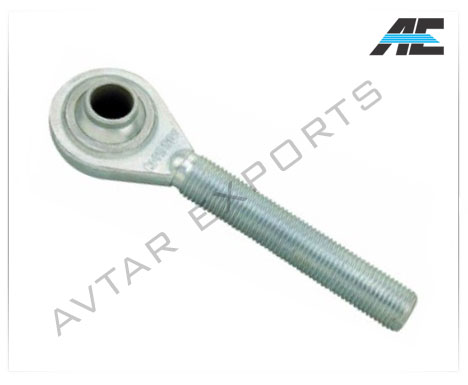

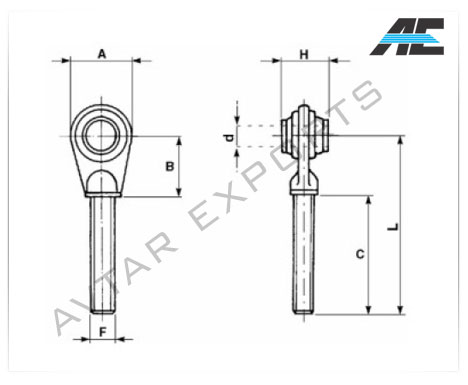

| end assembly |
|
|
|
|
|
|
Part No. |
Cat. |
A mm |
Bmm |
Cmm |
D mm |
F mm |
H mm |
L mm |
732201 |
1° |
52 |
45 |
125 |
19 |
22 × 2.5 |
44 |
170 |
732202 |
1° |
62 |
50 |
115 |
19 |
24 × 2.5 |
44 |
165 |
732203 |
2° |
75 |
55 |
170 |
25.4 |
27 × 3 |
51 |
255 |
732204 |
2° |
75 |
55 |
165 |
25.4 |
30 × 3 |
51 |
220 |
732205 |
2° |
80 |
55 |
165 |
25.4 |
36 × 3 |
51 |
220 |
732206 |
3³ |
96 |
70 |
200 |
32 |
36 × 3 |
51 |
270 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
