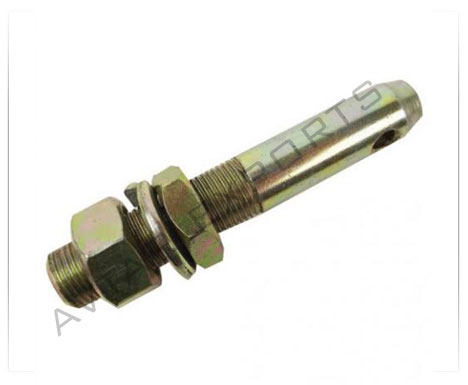

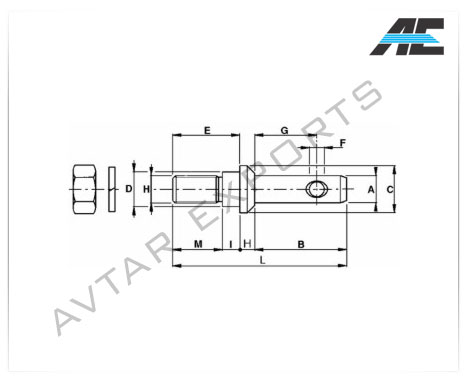

LIFT ARM PIN / LOWER LINK PIN


Part No.
A mm
Bmm
Cmm
Dmm
Emm
Fmm
Gmm
Hmm
Imm
Lmm
Mmm
732241
22
68
37
18
50
12
46
18 × 1.5
5
130
45
732242
22
73
38
20
45
12
50
20 × 1.5
5
130
40
732243
22
74
38
22
54
12
50
22 × 1.5
14
140
40
732244
22
74
38
28
54
12
50
22 × 1.5
14
140
40
732245
28
79
44
22
59
12
60
22 × 1.5
14
150
45
732246
28
79
42
24
59
12
55
22 × 1.5
14
150
45
732247
28
78
43
24
60
12
55
24× 1.5
15
150
45
732248
28
78
43
28
60
12
60
22 × 1.5
20
150
40
732249
28
79
42
28
59
12
55
27 × 1.5
14
150
45

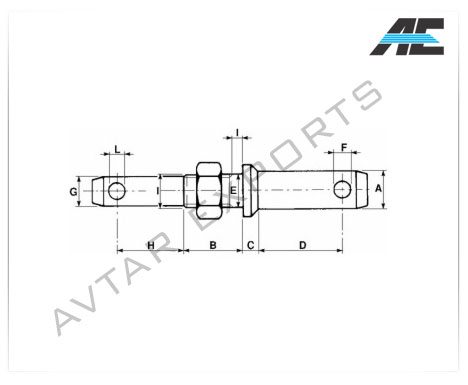

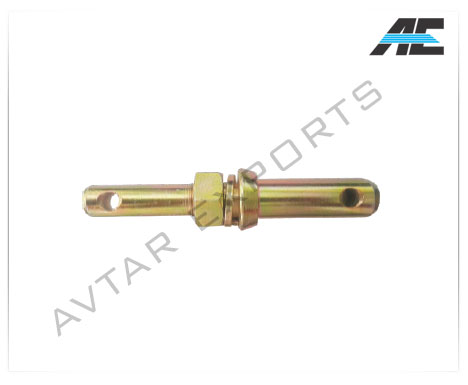

LIFT ARM PIN / LOWER LINK PIN


Part No.
A mm
Bmm
Cmm
Dmm
Emm
Fmm
Gmm
Hmm
Lmm
732251
28
42
12
58
28
12
22
48
27 × 3
732252
28
42
12
58
25
12
22
48
27 × 3

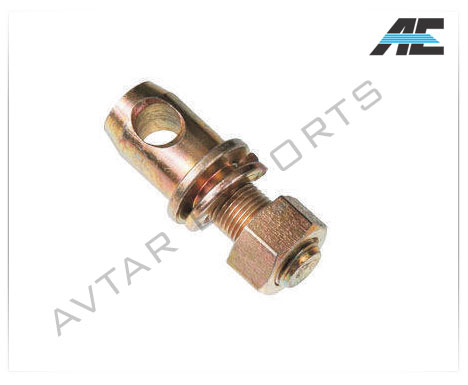

STABILIZER PIN

Part No.
Dia
Usable Length
Total Length
Thread
SBP3261
7/8"
3/8"
2-5/8"
5/8"
SBP3262
7/8"
1/2"
2-7/8"
5/8"
SBP3263
7/8"
1/2"
3-1/8"
3/4"
