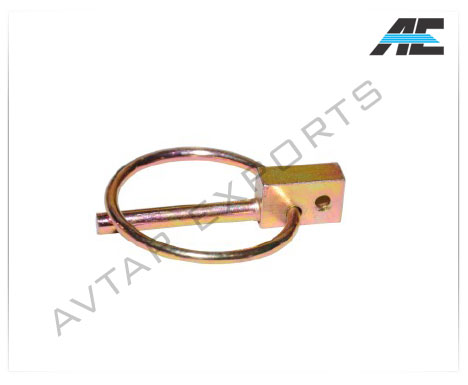

linch pin din 11023
Part No.
A mm
B mm
C mm
D mm
E mm
732371
4.5
32
25
31.00
2.50
732372
5.5
42
32
44.80
3.5
732373
7.5
42
32
44.80
3.5
732374
9.5
45
32
44.80
3.60
732375
11
45
32
44.80
3.60

732376
11
55
45
52.00
4.00
732377
16
60
45
52.00
4.00

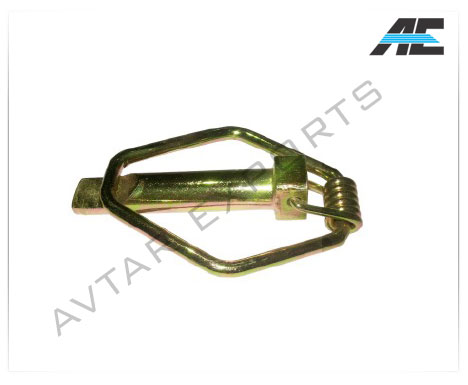

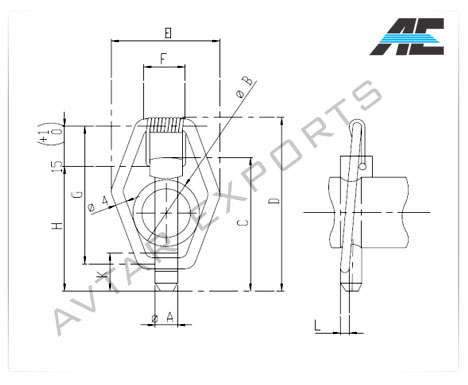

SAFTY linch pin

Part No.
A
 B C D E G H K L
732381
8.5
32
58
72
50
60
52.5
11
4
732382
10.5
32
58
72
50
60
52.5
11
4
732383
15.5
45
80
95
58
82
73
12
4

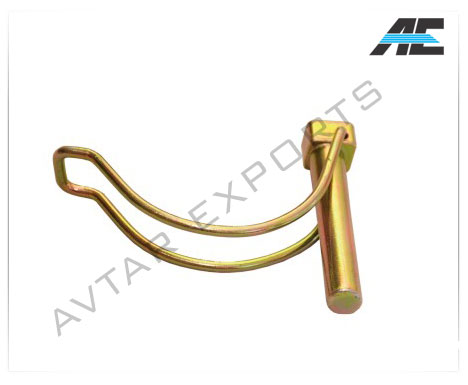

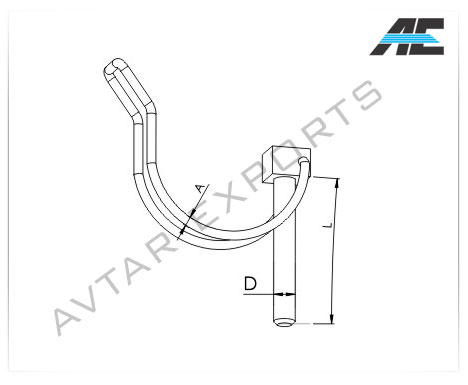

Linch pin for tube/pipe linch pin
Part No.
A mm
Dmm
L mm
732391
3
6
40
732392
3
6
45
732393
3
8
50
732394
3
8
60
732395
3.5
10
50

732396
3.5
10
55
732397
3.5
10
60
