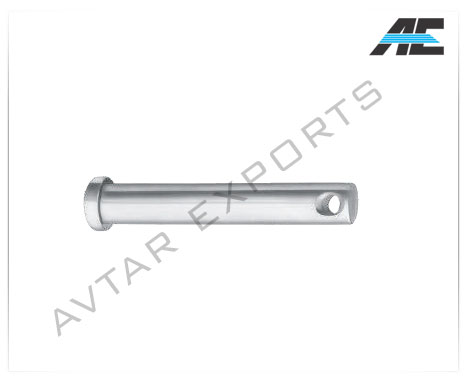

Clevis pin

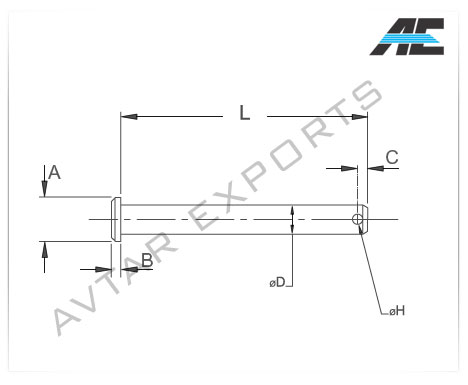

CLEVIS PINS - Inch.
Part No.
D
A
B
H
C
CL3016
3/16"
5/46"
1/16"
0.078"
0.100"
CL104
1/4"
3/8"
3/32"
0.078"
0.100"
CL5016
5/16"
7/16"
3/32"
0.104"
0.140"
CL308
3/8"
1/2"
1/8"
0.104"
0.160"
CL102
1/2"
5/8"
5/31"
0.135"
0.160"
CL508
5/8"
11/16"
13/64"
0.156"
0.160"
CL304
3/4"
15/16"
1/4"
0.156"
0.160"
CL100
1"
1.3/16"
11/32"
0.156"
0.210"
CLEVIS PINS - Metric
Part No.
D
A
B
H
C
CL501
5
8
1.6
1.2
2.9
CL601
6
10
2
1.6
3.2
CL801
8
14
3
2
3.5
CL1001
10
18
4
3.2
4.5
CL1201
12
20
4
3.2
5.5
CL1601
16
25
4.5
4
6
CL2001
20
28
5
5
8
CL2401
24
36
6
6.3
9

LINCH PIN STANDARD

Part No.
A mm
B mm
C mm
D mm
E mm
732351
4.5
28.6
35
42
3
732352
4.5
33
40
47
3
732353
6
36.5
45
54
3.2
732354
8
36.5
45
55
3.4
732355
9
36.5
45
55
3.4
732356
10
36.5
45
55
3.4
732357
10
39
50
61
4
732358
11
36.5
45
55
3.4
732359
11
39
50
61
4
732360
12
36.5
45
55
3.4
