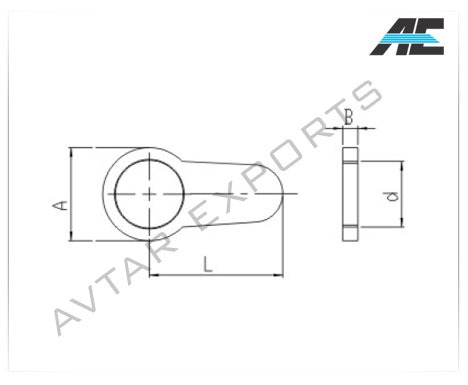

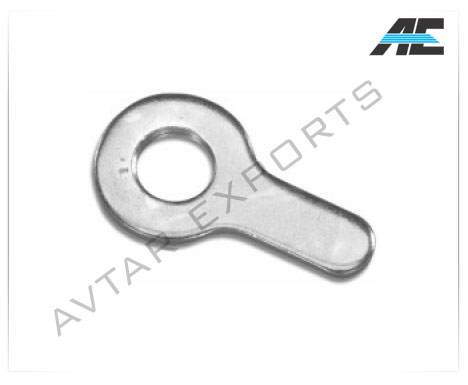

TOP Link Lock Nuts

Part No.
A mm
Bmm
D mm
L mm
732401
45
6
22 × 2.5
60
732402
45
6
24 × 3
60
732403
45
6
30 × 3
60
732404
60
10
36 × 3
88
732405
60
10
40 × 3
88

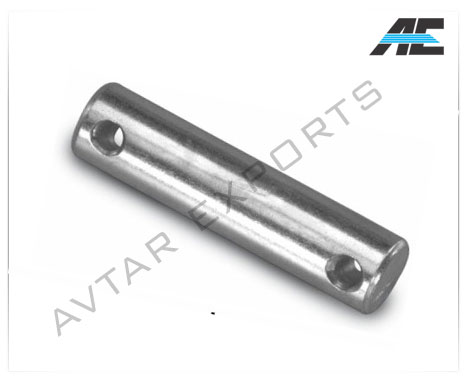

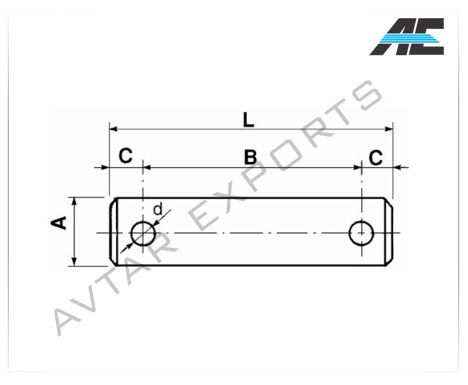

Linkage Pins

Part No.
A mm
Bmm
Cmm
D mm
L mm
732501
18
52
6
6
64
732502
18
62
6
6
74
732503
18
82
6
6
94
732504
20
58
6
6
71
732505
20
68
6
6
81
732506
22
52
6
6
64
732507
24
91
6
6
104
732508
26
57
6
6
66
732509
28
91
6
6
104

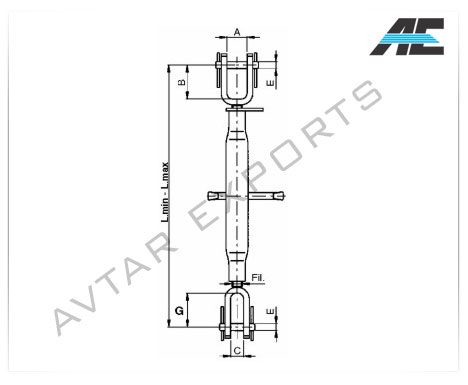

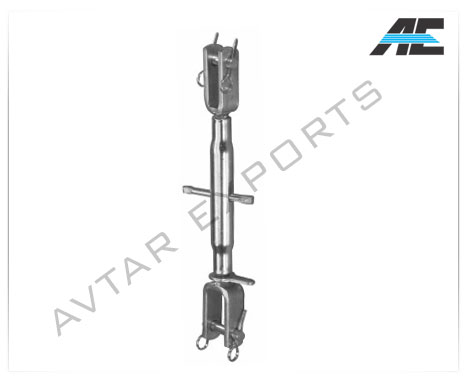

adjustable levelling arm

Part No.
A mm
Bmm
Cmm
D mm
G mm
mm
mm
732601
30
60
24
18
72
380
530
732602
40
70
24
18
72
450
600
732603
40
70
24
18
72
500
650
