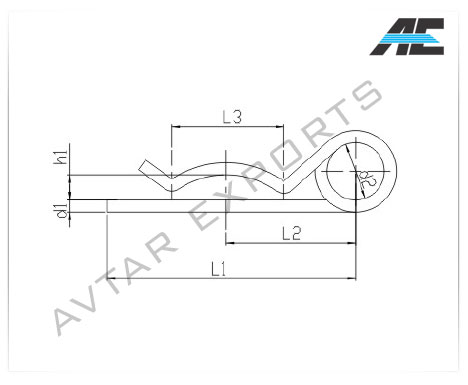

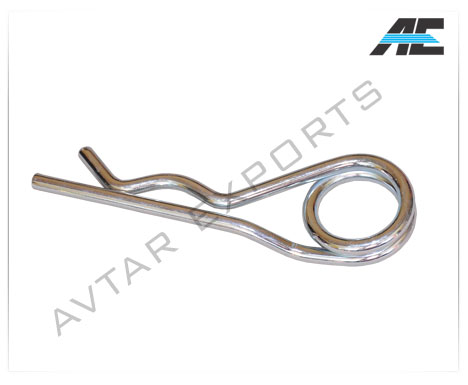

Spring Pin / R clip Double
Part No.
d1 mm
d2 mm
L1 mm
L2 mm
L3 mm
h1 mm
732551
2
10
50
25
17
2.5
732552
3
16
62
32
22
4.5
732553
4
23
76
44
25
5.5
732554
5
26
92
50
32
5.5
732556
6
30
120
70
37
8.0
732557
7
30
130
72
38
8.5
732558
8
30
130
75
39
7.5

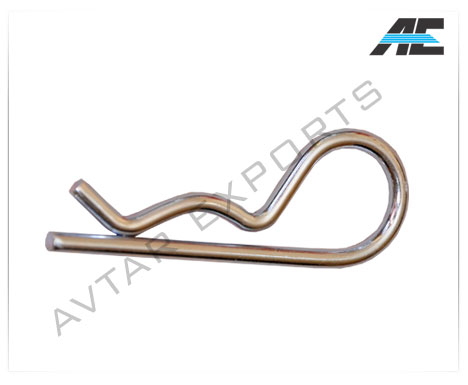

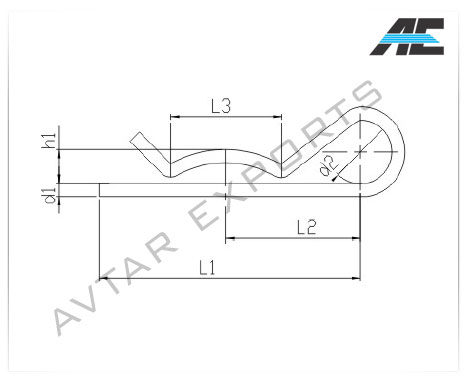

Spring Pin / R clip single
Part No.
d1 mm
d2 mm
L1 mm
L2 mm
L3 mm
h1 mm
732561
2
10
50
25
17
2.5
732562
3
18
60
28
23
3.5
732563
4
20
60
30
22
5.0
732564
5
24
85
40
30
6.5
732565
6
30
105
50
37
9.0
732566
7
30
105
50
42
8.5
732567
8
28
110
55
44
10.0

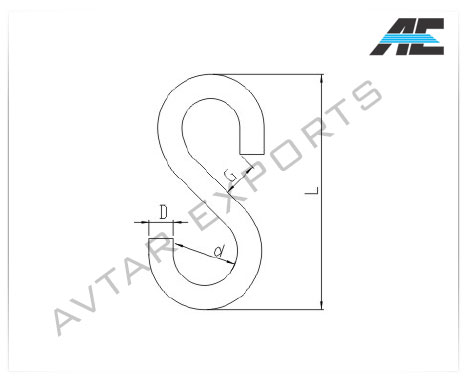

S hook
Part No.
D mm
G mm
L mm
732581
2
4
25
732582
2.5
5
30
732583
3
6
33
732584
4
8
35
732585
5
9
45
732586
6
10
55
732587
7
17
65
732588
8
20
75
